Collection of pages from K&E catalogs for the 4210 family of Polar Planimeters
Early 4212
4212 from the 1939 price list
Description:

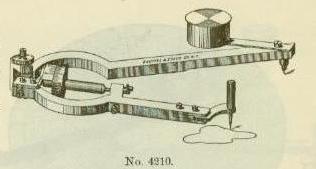

The 4210 Family of Polar Planimeters is best described by a quote from the 1901 K&E catalog:
"No. 4210 represents the Polar Planimeter in its simplest form. It measures up to 10 square inches in tenths and hundredths of a square inch."
The following models are part of the 4210 family:
- 1110 ------ Polar Planimeter
- 1111 ------ Polar Planimeter with multiplier wheel
- 4210 ------ Polar Planimeter
- 4211 ------ Polar Planimeter with multiplier wheel
- 4212 ------ Polar Planimeter with multiplier wheel
History:
Of the catalogs available the 4210 Polar Planimeter family first appeared in the 1892 catalog.
- 1892 -- The 1110 and 1111 are first seen in the catalogs available. They were probably available earlier.
- 1901 -- The numbers were converted to 4210 and 4212
- 1925 -- The 4211 was introduced in the 1925 price list for the 1921 catalog
- 1927b - The 4210 was not show. It was replaced by the 4211.
- 1936 -- The 4211 and 4212 were last seen in the 1936 catalog.
- 1939 -- The 1939 price list for the 1936 catalog shows a 4212 with a tracer-point support and a winged finger-grip.
